Unity中使用C++ OpenCV并且打包为Android apk

Posted on In , Views: Disqus:

我们需要在Unity中使用WebCamTexture获取图像，传送到OpenCV中做处理，然后返回到Unity中作显示；Unity通过调用动态链接库so与OpenCV进行通信，最终程序会打包成APK并且在Android上运行。

本文主要参考了： OpenCV + Android + Unity How to Pass Images Between OpenCV and Unity 两篇文章。

系统环境：

  • Visual Studio 2015
  • OpenCV 3.4.7
  • Android API level 19 & 26
  • Unity 2019.2.5f1
  • .NET Framework 4.7.2

生成动态链接库

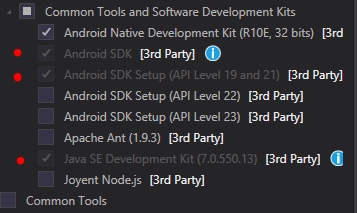

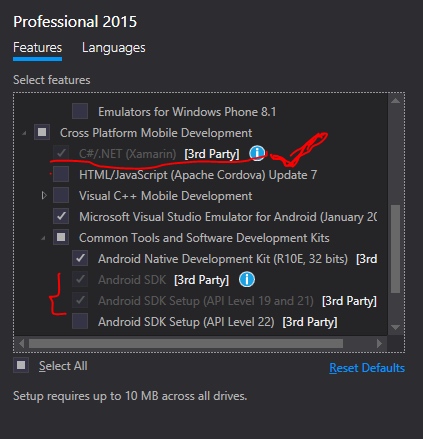

本文使用的是Visual Studio 2015，注意要安装Xamarin和Android SDK1：

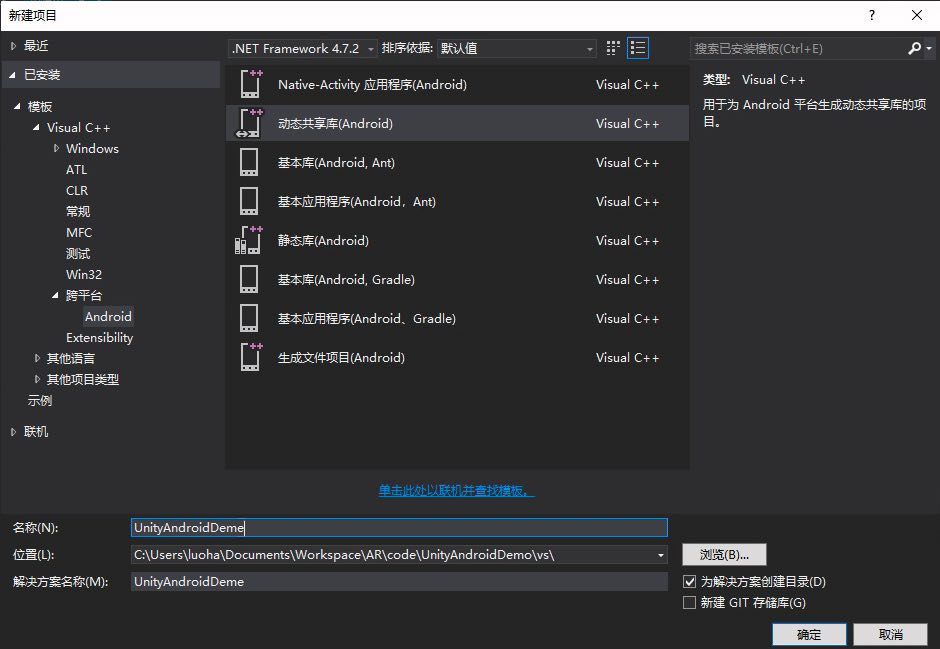

打开Visual Studio，新建一个Android动态共享库项目UnityAndroidDeme：

vs_android_so

下载opencv-3.4.7-android-sdk。

项目名字右键->属性->配置属性->C/C++->常规->附加包含目录，添加Path-to-OpenCV-android-sdk\sdk\native\jni\include。

项目名字右键->属性->配置属性->C链接器->常规->附加库目录，添加Path-to-OpenCV-android-sdk\sdk\native\libs\armeabi-v7a。

项目名字右键->属性->配置属性->C链接器->输入->附加依赖项，添加Path-to-OpenCV-android-sdk\sdk\native\libs\armeabi-v7a\libopencv_java3.so，注意这里需要完整的路径。

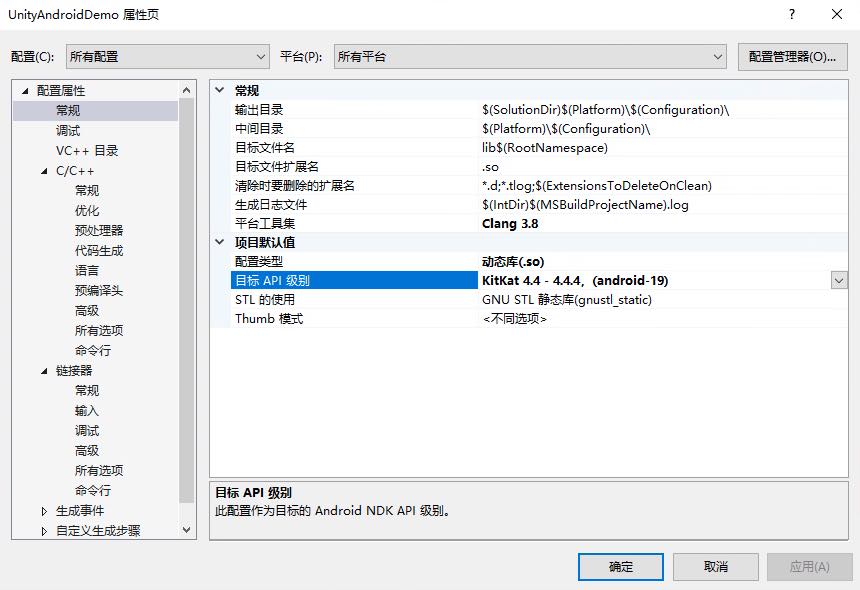

项目名字右键->属性->配置属性->常规->目标API级别，选取KitKat 4.4 - 4.4.4,(android-19)。

vs_kitkat

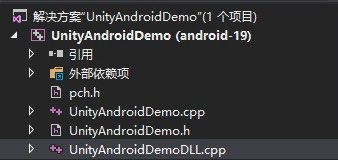

添加文件UnityAndroidDemo.h，UnityAndroidDemo.cpp和UnityAndroidDemoDLL.cpp。

vs_project

UnityAndroidDemo.h:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
#pragma once
#include <opencv2\core.hpp>
#include <opencv2\imgproc\imgproc.hpp>

struct Color32
{
	uchar red;
	uchar green;
	uchar blue;
	uchar alpha;
};

class UnityAndroidDemo
{
public:
	UnityAndroidDemo();
	~UnityAndroidDemo();
	void Canny(Color32 ** img, int width, int height);
private:
	cv::Mat img_;
};

UnityAndroidDemo.cpp:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#include "UnityAndroidDemo.h"

UnityAndroidDemo::UnityAndroidDemo() {
}

UnityAndroidDemo::~UnityAndroidDemo() {
}

void UnityAndroidDemo::Canny(Color32 ** img, int width, int height) {
	cv::Mat texture(height, width, CV_8UC4, *img);
	cv::cvtColor(texture, img_, cv::COLOR_BGRA2GRAY);
	Canny(img_, img_, 50, 200);
	cv::cvtColor(img_, texture, cv::COLOR_GRAY2RGBA);
}

UnityAndroidDemoDLL.cpp:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
#include "UnityAndroidDemo.h"

#define LOGI(...) ((void)__android_log_print(ANDROID_LOG_INFO, "UnityAndroidDemo", __VA_ARGS__))
#define LOGW(...) ((void)__android_log_print(ANDROID_LOG_WARN, "UnityAndroidDemo", __VA_ARGS__))

extern "C" {
	UnityAndroidDemo* CreateUnityAndroidDemo() {
		UnityAndroidDemo* obj = new UnityAndroidDemo();
		return obj;
	}

	void DestroyUnityAndroidDemo(UnityAndroidDemo* obj) {
		delete obj;
		obj = NULL;
	}

	void Canny(UnityAndroidDemo* obj, Color32 **img, int width, int height) {
		obj->Canny(img, width, height);
	}
}

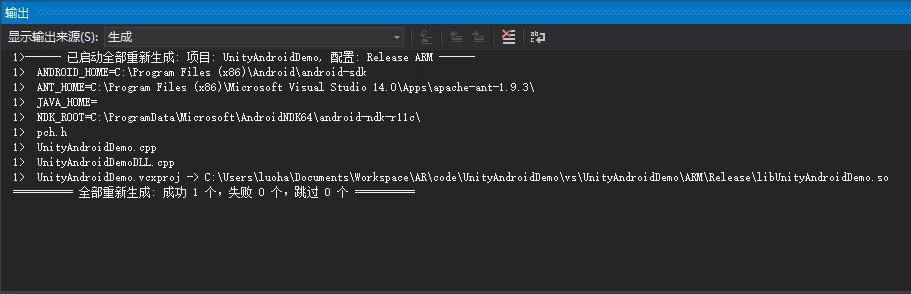

生成Release，ARM版的libUnityAndroidDemo.so。

release_ar
build_output

Unity

新建一个Unity 3D项目UnityAndroidDemo，将OpenCV的动态链接库libopencv_java3.so和上一步生成的libUnityAndroidDemo.so复制一份放到文件夹Assets\Plugins\Android中。

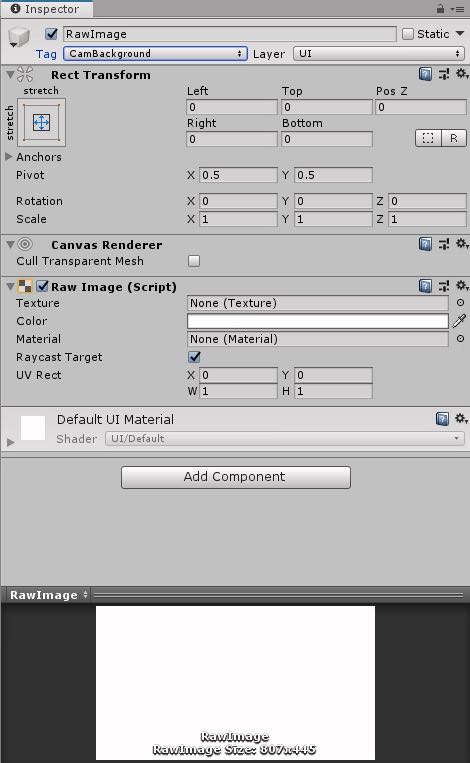

Scenes中添加一张RawImage，新加设置Tag为CamBackground，并设置好Stretch和位置大小等信息。

CamBackground

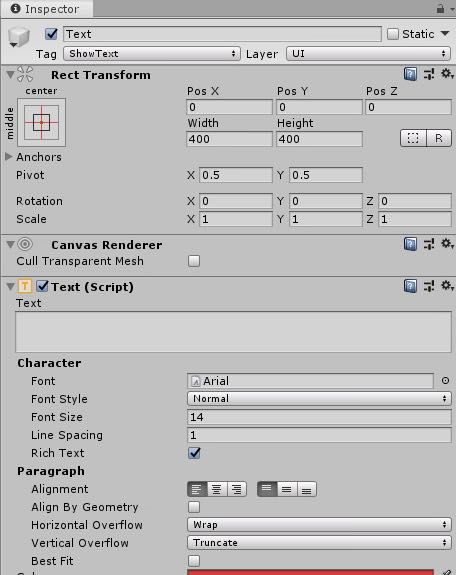

Scenes中添加一个Text，新加设置Tag为ShowText。

showtext

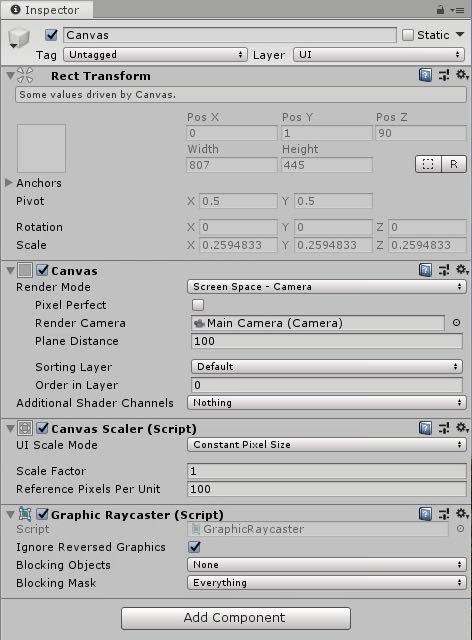

选择RawImage上一层所属的Canvas，Inspector窗口中Render Mode选择Screen Space - Camera，并将Main Camera拉到Render Camera。

canvas

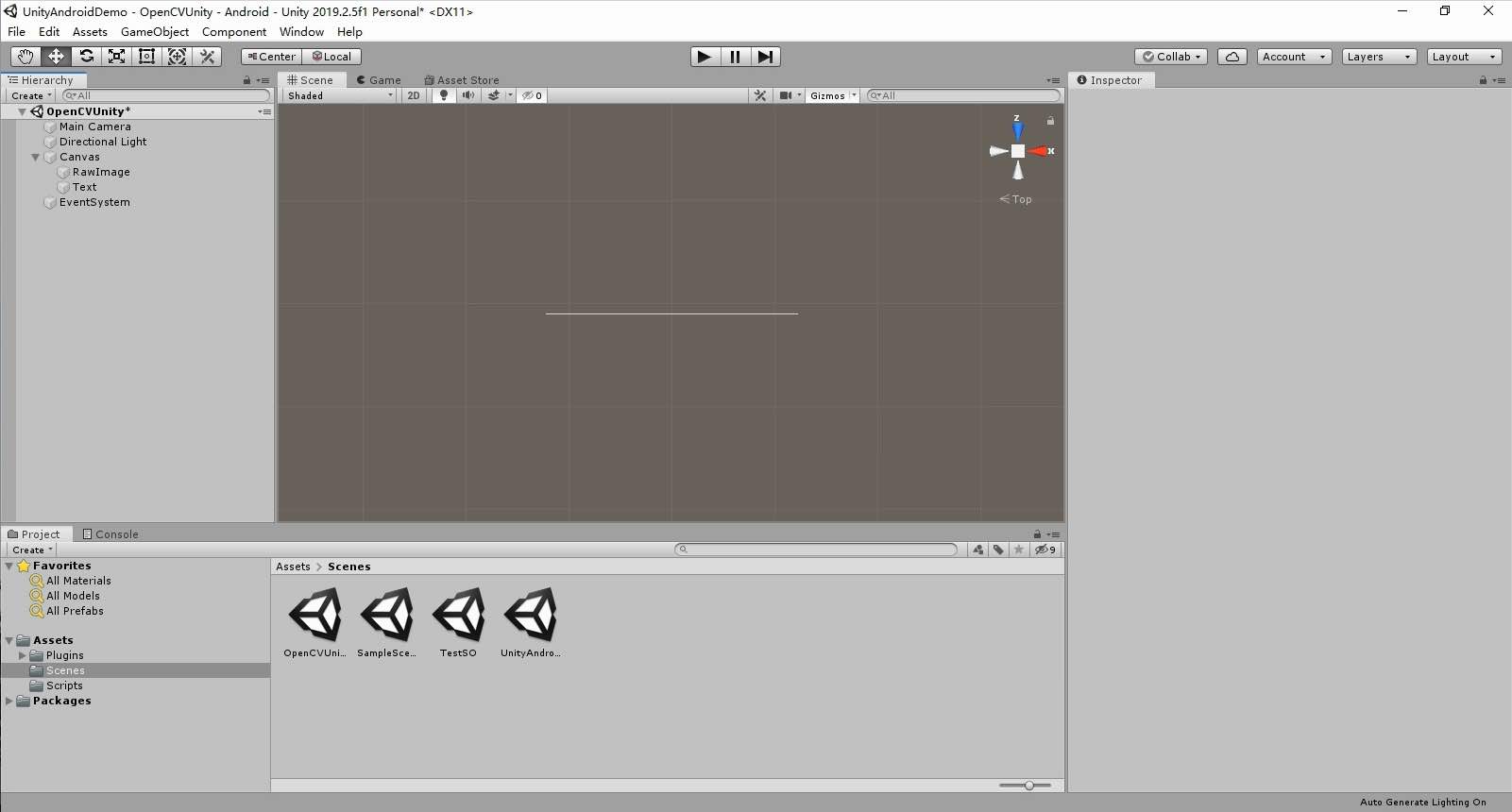

unity_main_project

Main Camera组件中添加一个名为OpenCVUinty的Script。

OpenCVUinty.cs:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using UnityEngine;
using UnityEngine.UI;
using System.Runtime.InteropServices;

public class OpenCVUinty : MonoBehaviour
{
	[DllImport("UnityAndroidDemo")]
    private static extern IntPtr CreateUnityAndroidDemo();

    [DllImport("UnityAndroidDemo")]
    private static extern void DestroyUnityAndroidDemo(IntPtr obj);

    [DllImport("UnityAndroidDemo")]
    private static extern double Add(IntPtr obj, double x, double y);

    [DllImport("UnityAndroidDemo")]
    private static extern void Threshold(IntPtr obj, ref Color32[] img, int width, int height);

    private IntPtr UnityAndroidDemo = IntPtr.Zero;

	public int width = 640;
    public int height = 480;
    public int fps = 30;

    private WebCamTexture cam = null;
    public string cam_name = "Integrated Camera";
    private Color32[] cam_data = null;
	private Texture2D tex = null;

	private Text show_text = null;
    private RawImage background = null;

    // Start is called before the first frame update
    IEnumerator Start()
    {
	    yield return Application.RequestUserAuthorization(UserAuthorization.WebCam);

    	show_text = GameObject.FindGameObjectWithTag("ShowText").GetComponent<UnityEngine.UI.Text>();
    	background = GameObject.FindWithTag("CamBackground").GetComponent<RawImage>();

    	UnityAndroidDemo = CreateUnityAndroidDemo();

    	if (Application.HasUserAuthorization(UserAuthorization.WebCam))
    	{
	    	WebCamDevice[] devices = WebCamTexture.devices;

	        if (devices.Length == 0)
	        {
	            // Debug.Log("No camera detected!");
	            show_text.text += "No camera detected!\n";
	            yield break;
	        }

	        bool find_camera = false;

	        for (int i = 0; i < devices.Length; i++)
	        {
	            // Debug.Log("Found camera:" + devices[i].name);
	            show_text.text += ("Found camera:" + devices[i].name + "\n");
	            if (cam_name.Equals(devices[i].name)) {
	            	find_camera = true;
	            }
	        }

	        if (!find_camera)
	        {
				show_text.text += ("Unable to find camera: " + cam_name + "\n");
	        	show_text.text += ("Open the first camera" + devices[0].name + "\n");

	        	cam_name = devices[0].name;
	        }

	        cam = new WebCamTexture(cam_name, width, height, fps);

	        WebCamTexture.allowThreadedTextureCreation = true;
	        WebCamTexture.streamingTextureDiscardUnusedMips = true;

	        cam.Play();

	        show_text.text += (cam_name +" Running...\n");
    	}
    }

    void OnDestroy()
    {
    	if (UnityAndroidDemo != IntPtr.Zero)
    	{
    		DestroyUnityAndroidDemo(UnityAndroidDemo);
    		UnityAndroidDemo = IntPtr.Zero;
    	}
    }


    // Update is called once per frame
    void Update()
    {
    	if (cam_data == null)
    	{
    		cam_data = new Color32[cam.width * cam.height];
    	}

    	if (tex == null)
    	{
    		tex = new Texture2D(cam.width, cam.height);
    	}


    	if (cam != null && cam.isPlaying)
    	{
    		cam_data = cam.GetPixels32();

			Threshold(UnityAndroidDemo, ref cam_data, cam.width, cam.height);

    		tex.SetPixels32(cam_data);
			tex.Apply();

	        background.texture = tex;

    		show_text.text += "ProcessImage\n";
    	}

    }
}

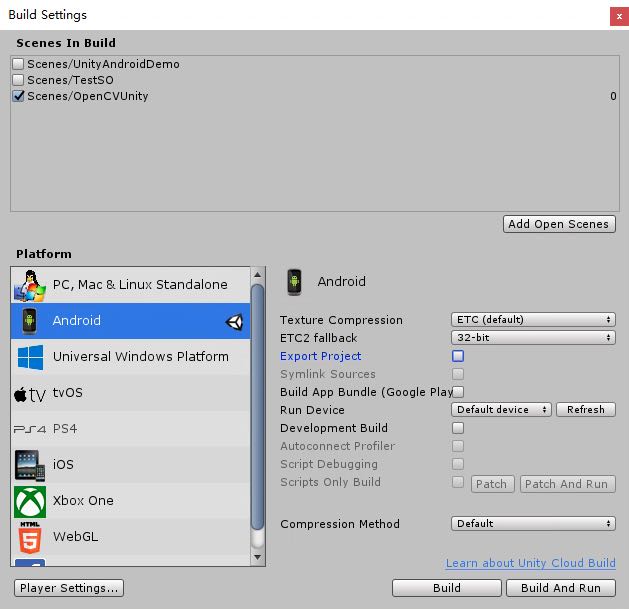

File->Build Settings..，Add Open Scenes选择当前场景，Switch Platform到Android。

build_setting

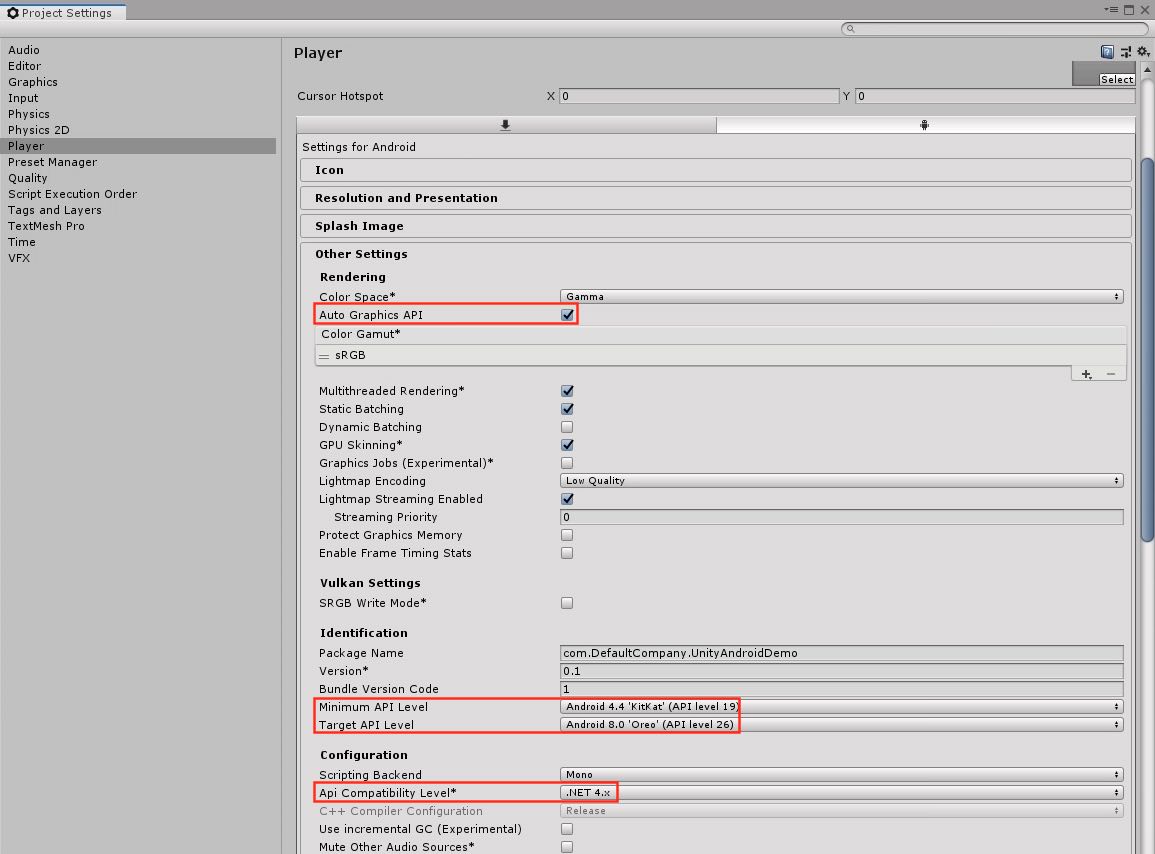

打开Player Settings，注意红框的选择：

play_settings

Build生成UnityAndroidDemo.apk。

Test

我使用Genymotion虚拟机来测试。选择生成一款8.0-API 26的设备，下载Genymotion-ARM-Translation_for_8.0并且拖到虚拟机中安装，使得虚拟机能够执行ARM指令。

将UnityAndroidDemo.apk中拖入到虚拟机中进行测试，注意要打开摄像头的权限。

  1. https://stackoverflow.com/questions/36158015/install-xamarin-on-visual-studio-2015↩︎
