ESP32使用MicroPython

烧录固件

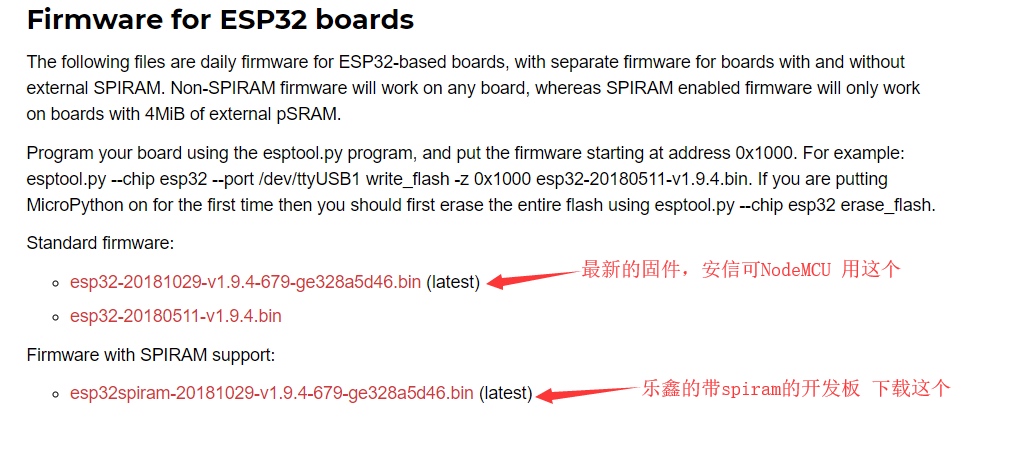

这里下载最新固件1

这里,我们使用esp32-20190718-v1.11-163-g0c12adca4.bin

1
sudo pip3 install esptool

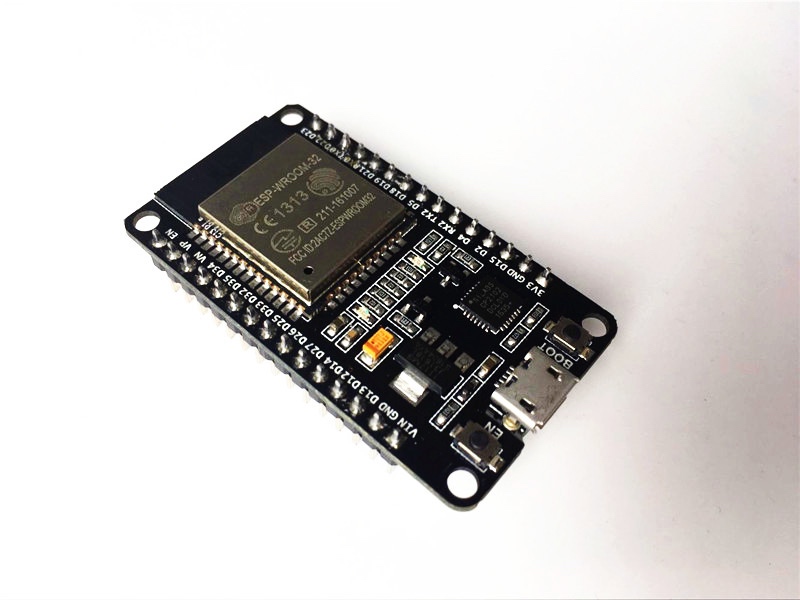

使用usb线将ESP32板卡接上电脑:

1
2
ls -l /dev/ttyUSB*
crw-rw---- 1 root dialout 188, 0 Jul 18 15:06 /dev/ttyUSB0

此时,ESP32板卡的端口号为ttyUSB0

擦除flash:

1
sudo esptool.py --port /dev/ttyUSB0 erase_flash
1
2
3
4
5
6
7
8
9
10
11
12
13
14
esptool.py v2.7
Serial port /dev/ttyUSB0
Connecting........_____....._____....._____....._____....._____....._____....
Detecting chip type... ESP32
Chip is ESP32D0WDQ6 (revision 1)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
Crystal is 40MHz
MAC: a4:cf:12:43:7a:64
Uploading stub...
Running stub...
Stub running...
Erasing flash (this may take a while)...
Chip erase completed successfully in 9.1s
Hard resetting via RTS pin...

刷入固件:

1
sudo esptool.py --chip esp32 --port /dev/ttyUSB0 write_flash -z 0x1000 esp32-20190718-v1.11-163-g0c12adca4.bin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
esptool.py v2.7
Serial port /dev/ttyUSB0
Connecting........_
Chip is ESP32D0WDQ6 (revision 1)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
Crystal is 40MHz
MAC: a4:cf:12:43:7a:64
Uploading stub...
Running stub...
Stub running...
Configuring flash size...
Auto-detected Flash size: 4MB
Compressed 1167312 bytes to 729727...
Wrote 1167312 bytes (729727 compressed) at 0x00001000 in 65.0 seconds (effective 143.7 kbit/s)...
Hash of data verified.

Leaving...
Hard resetting via RTS pin...

测试2

1
2
3
sudo apt-get install picocom

sudo picocom -b 115200 /dev/ttyUSB0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
picocom v2.2

port is : /dev/ttyUSB0
flowcontrol : none
baudrate is : 115200
parity is : none
databits are : 8
stopbits are : 1
escape is : C-a
local echo is : no
noinit is : no
noreset is : no
nolock is : no
send_cmd is : sz -vv
receive_cmd is : rz -vv -E
imap is :
omap is :
emap is : crcrlf,delbs,

Type [C-a] [C-h] to see available commands

Terminal ready

回车:

1
2
3

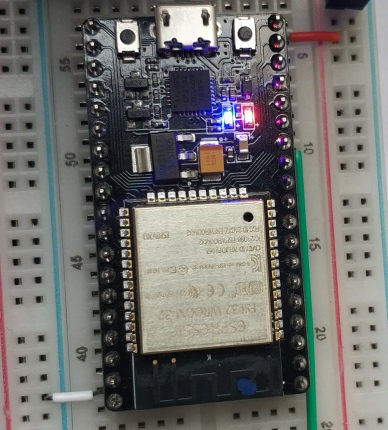

>>> import machine
>>> pin2 = machine.Pin(2, machine.Pin.OUT)
>>> pin2.value(1)

退出:

Ctrl + ACtrl + Q

CTRL-A -- on a blank line, enter raw REPL mode CTRL-B -- on a blank line, enter normal REPL mode CTRL-C -- interrupt a running program CTRL-D -- on a blank line, do a soft reset of the board CTRL-E -- on a blank line, enter paste mode


  1. http://www.1zlab.com/wiki/micropython-esp32/flash-firmware↩︎

  2. http://www.1zlab.com/wiki/micropython-esp32/repl-over-the-serial-port/↩︎
