MYNT EYE Camera Configuration and Calibration

Posted on In , Views: Disqus:

Hardware1

Firmware: v1.8

IMU has 3-axis accelerometer and 3-axis gyroscope to detect linear acceleration and rotational rate. IMU sampling rate is 250 Hz.

IMU Rotation and Translation

IMU Rotation matrix (Right-handed coordinate system, RUB (right-up-back), rotate 90° around the z-axis):

\[\left[ {\matrix{ 0&{ - 1}&0 \cr 1&0&0 \cr 0&0&1 } } \right]\]

Translation vector from camera to IMU (in meter):

Translation
Camera Left [ 0.07608, -0.00312, -0.01464]
Camera Right [-0.04392, -0.00312, -0.01464]

The value of z-axis is from the center of the lens to the board. The deviation maybe ±0.25mm because of the difference in focal length.

IMU Noise Density and Random Walk

Noise Density Random Walk
Accelerometer 7.6509e-02 5.3271e-02
Gyroscope 9.0086e-03 5.5379e-05

Install Opencv 3.4

1
2
3
4
5
6
7
8
mkdir build
cd build
cmake -D CMAKE_BUILD_TYPE=Release -D CMAKE_INSTALL_PREFIX=/usr/local -D WITH_TBB=ON -D BUILD_EXAMPLES=OFF -D BUILD_DOCS=OFF -D BUILD_PERF_TESTS=OFF -D BUILD_TESTS=OFF -D WITH_GTK_2_X=ON ..
make -j8
sudo make install

sudo /bin/bash -c 'echo "/usr/local/lib" > /etc/ld.so.conf.d/opencv.conf'
sudo ldconfig

Install MYNT-EYE-OKVIS-Sample2

1
2
3
4
5
6
7
8
sudo apt-get install cmake libgoogle-glog-dev libatlas-base-dev libeigen3-dev libsuitesparse-dev libboost-dev libboost-filesystem-dev

git clone https://github.com/ethz-asl/okvis.git

mkdir build && cd build
cmake -DCMAKE_BUILD_TYPE=Release ..
make -j8
make install

Build Kalibr with catkin3

1
2
3
4
5
cd ~/catkin_ws/src
git clone https://github.com/ethz-asl/Kalibr.git
cd ..
catkin_make -DCMAKE_BUILD_TYPE="Release" -j4
source ./devel/setup.sh

Calibrate Camera and IMU

Steps4
  1. Calibration targets

You can download from the website or created by yourself followed the instructions5

  1. Get dataset of stereo camera and IMU.

1
2
cd mynt-eye-okvis-sample/build
./okvis_app_getcameraimucalibdataset 0 ./cameraimu/cam0/ ./cameraimu/cam1/ ./cameraimu/imu0.csv
0 means that it use video1, ./cameraimu/cam0 is the folder to store left images, ./camera/cam0 is the folder to store right images, ./cameraimu/imu0.csv is the file to store the data of imu.

  1. Use kalibrbagcreate creat calibration bag of stereo camera and imu. First move the folder of camera to kalibr's workspace, then creat calibration bag.

1
2
3
cd ~/catkin_ws/
source ./devel/setup.sh
kalibr_bagcreater --folder cameraimu/. --output-bag cameraimucalib.bag

  1. Calibrate stereo camera

1
kalibr_calibrate_cameras --target april_5x8.yaml cameraimucalib.bag --models pinhole-radtan pinhole-radtan --topics /cam0/image_raw /cam1/image_raw

april_5x8.yaml is the config file of calibration target which looks like:

1
2
3
4
5
target_type: 'aprilgrid' #gridtype
tagCols: 5               #number of apriltags
tagRows: 8               #number of apriltags
tagSize: 0.025           #size of apriltag, edge to edge [m]
tagSpacing: 0.3          #ratio of space between tags to tagSize

The file will looks like if using checkerboard:

1
2
3
4
5
targetType: 'checkerboard' #gridtype
targetCols: 6              #number of internal chessboard corners
targetRows: 7              #number of internal chessboard corners
rowsMetricSize: 0.06       #size of one chessboard square [m]
colsMetricSize: 0.06       #size of one chessboard square [m]

  1. Camera stereo camera and imu

1
kalibr_calibrate_imu_camera --target april_5x8.yaml --cam cameracalib.yaml --imu imu.yaml --bag cameraimucalib.bag --bag-from-to 0 72

cameracalib.yaml is the config file of stereo camera generated by step 4, imu.yaml is config file of imu in mynt-eye-okvis-sample/config, from-to 0 72 means that it use bag from 0s to 72s to calibration.

Results

The Yaml formats of the calibration file can been seen from here.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
Calibration results
===================
Normalized Residuals
----------------------------

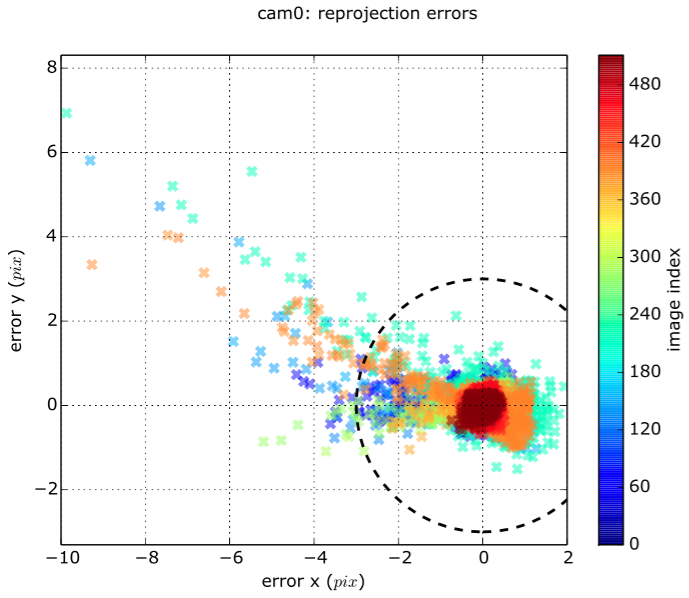

Reprojection error (cam0):     mean 0.246874712924, median 0.217537207629, std: 0.25184628687

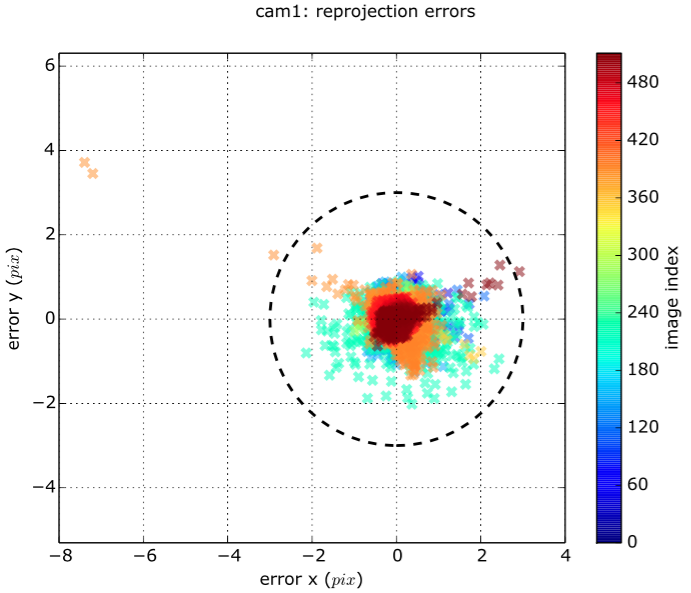

Reprojection error (cam1):     mean 0.195955751013, median 0.175831842512, std: 0.140312508567

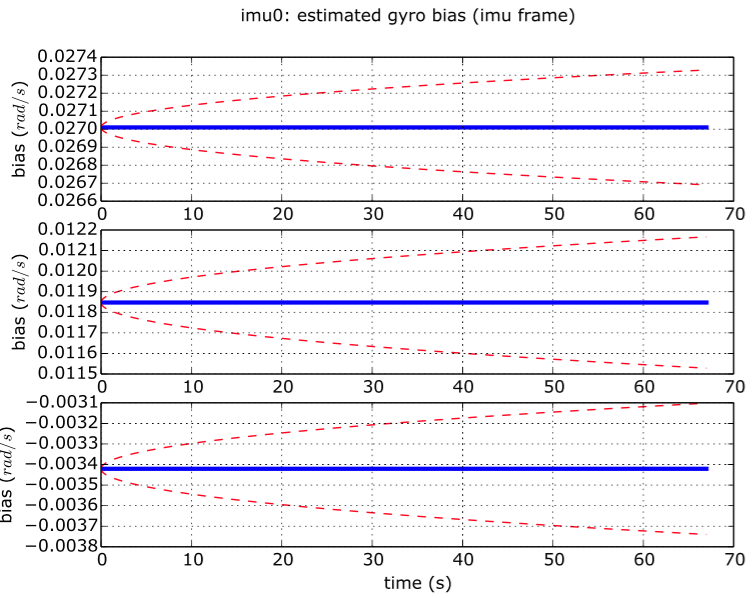

Gyroscope error (imu0):        mean 0.174678800713, median 0.142828483069, std: 0.187200875016
Accelerometer error (imu0):    mean 0.132150523822, median 0.108954584935, std: 0.106560662224

Residuals
----------------------------
Reprojection error (cam0) [px]:     mean 0.246874712924, median 0.217537207629, std: 0.25184628687
Reprojection error (cam1) [px]:     mean 0.195955751013, median 0.175831842512, std: 0.140312508567

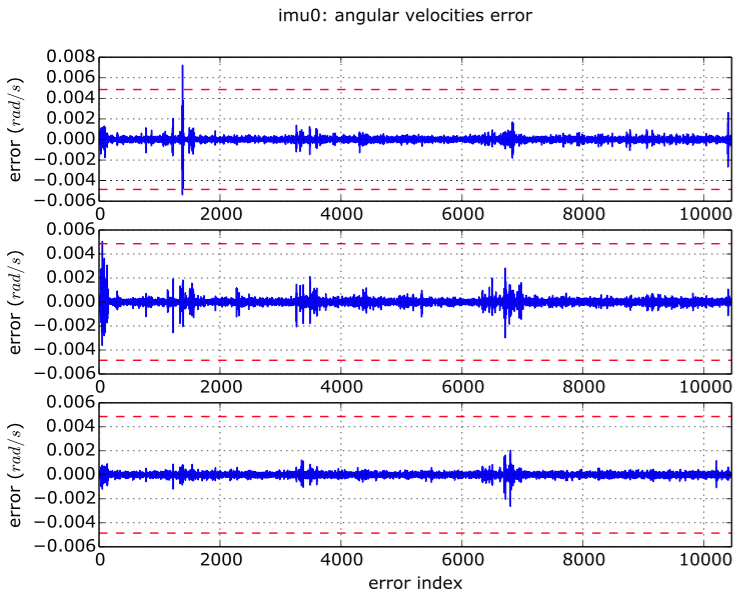

Gyroscope error (imu0) [rad/s]:     mean 0.000282774195232, median 0.000231214143852, std: 0.000303045226801
Accelerometer error (imu0) [m/s^2]: mean 0.00348953062143, median 0.00287702499756, std: 0.00281381172859

Transformation (cam0):
-----------------------
T_ci:  (imu0 to cam0):
[[ 0.04341751  0.99896022  0.01390713 -0.00252296]
 [-0.99902347  0.04329777  0.00879867  0.00163378]
 [ 0.00818737 -0.01427556  0.99986458 -0.0060169 ]
 [ 0.          0.          0.          1.        ]]

T_ic:  (cam0 to imu0):
[[ 0.04341751 -0.99902347  0.00818737  0.00179099]
 [ 0.99896022  0.04329777 -0.01427556  0.0023637 ]
 [ 0.01390713  0.00879867  0.99986458  0.0060368 ]
 [ 0.          0.          0.          1.        ]]

timeshift cam0 to imu0: [s] (t_imu = t_cam + shift)
0.0


Transformation (cam1):
-----------------------
T_ci:  (imu0 to cam1):
[[ 0.04587416  0.99870286  0.02209422 -0.12418407]
 [-0.99892623  0.04571856  0.00749699  0.00192461]
 [ 0.00647715 -0.02241441  0.99972778 -0.00529794]
 [ 0.          0.          0.          1.        ]]

T_ic:  (cam1 to imu0):
[[ 0.04587416 -0.99892623  0.00647715  0.00765369]
 [ 0.99870286  0.04571856 -0.02241441  0.12381624]
 [ 0.02209422  0.00749699  0.99972778  0.00802582]
 [ 0.          0.          0.          1.        ]]

timeshift cam1 to imu0: [s] (t_imu = t_cam + shift)
0.0

Baselines:
----------
Baseline (cam0 to cam1):
[[ 0.99996344 -0.00239335  0.00820977 -0.12160789]
 [ 0.00240439  0.99999622 -0.00133526  0.00028887]
 [-0.00820654  0.00135495  0.99996541  0.00069583]
 [ 0.          0.          0.          1.        ]]
baseline norm:  0.121610228073 [m]


Gravity vector in target coords: [m/s^2]
[ 7.91261884  0.21833681 -5.7888872 ]


Calibration configuration
=========================

cam0
-----
  Camera model: pinhole
  Focal length: [441.99817968009677, 441.66869887034943]
  Principal point: [369.9738561699648, 234.13190157824815]
  Distortion model: radtan
  Distortion coefficients: [-0.2974398881998292, 0.08194961900031578, 0.00022897719568841816, -0.00012227166858536044]
  Type: aprilgrid
  Tags:
    Rows: 8
    Cols: 5
    Size: 0.025 [m]
    Spacing 0.0075 [m]


cam1
-----
  Camera model: pinhole
  Focal length: [441.6397246072589, 441.52814086273514]
  Principal point: [344.95454482822214, 263.0207032045381]
  Distortion model: radtan
  Distortion coefficients: [-0.3086004799815589, 0.0952146365061291, -0.00035306500466706703, 0.000399686074862005]
  Type: aprilgrid
  Tags:
    Rows: 8
    Cols: 5
    Size: 0.025 [m]
    Spacing 0.0075 [m]



IMU configuration
=================

IMU0:
----------------------------
  Model: calibrated
  Update rate: 500
  Accelerometer:
    Noise density: 0.0011809
    Noise density (discrete): 0.0264057267463
    Random walk: 8.2583e-05
  Gyroscope:
    Noise density: 7.2396e-05
    Noise density (discrete): 0.00161882377299
    Random walk: 1.3e-05
  T_i_b
    [[ 1.  0.  0.  0.]
     [ 0.  1.  0.  0.]
     [ 0.  0.  1.  0.]
     [ 0.  0.  0.  1.]]
  time offset with respect to IMU0: 0.0 [s]
cali
cali
cali
cali
